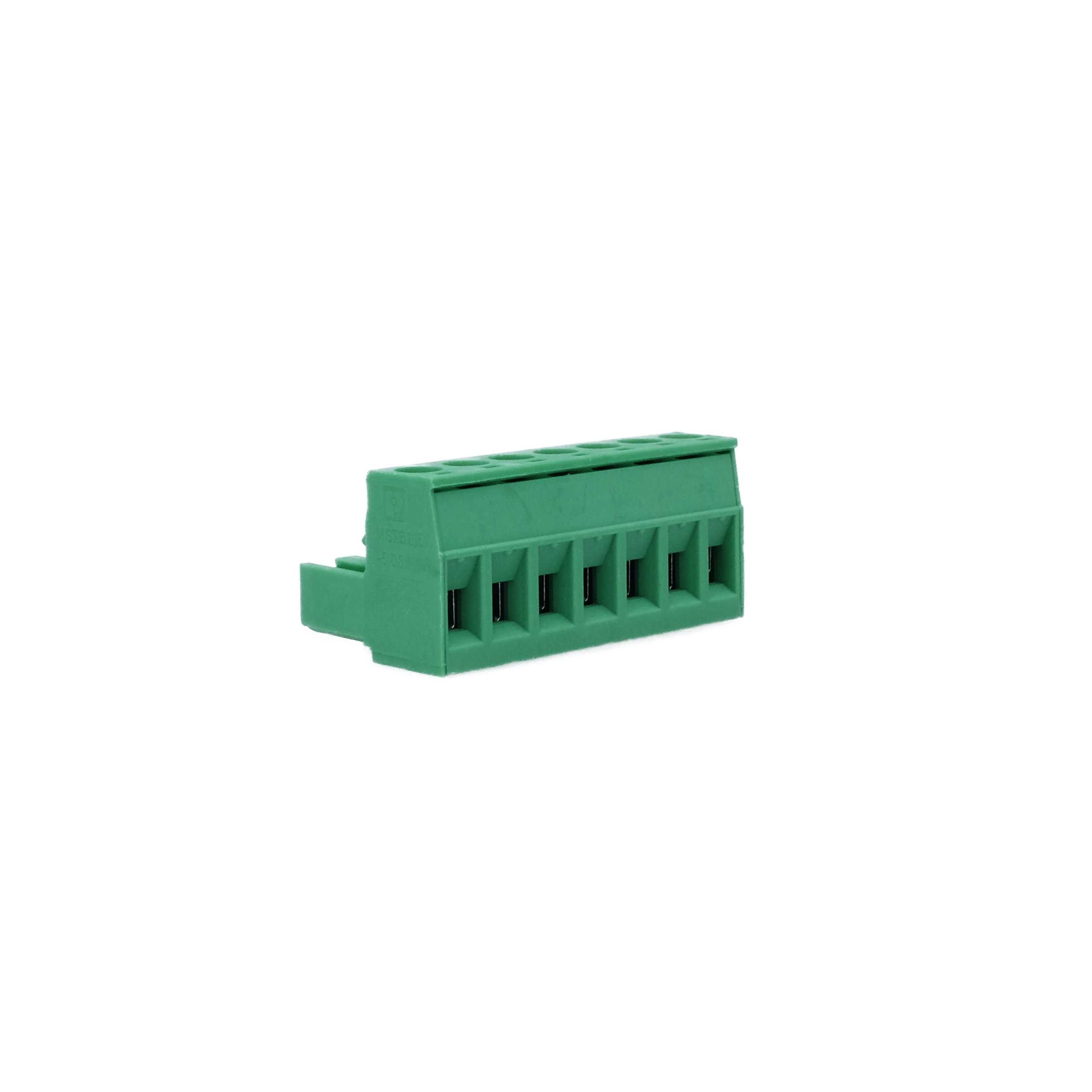

Phoenix Contact Connector MSTB 2.5/ 7-ST-5.08 7 pin 1757064
40% Discount
Sold out
Our payment methods:
Product number:
CN0800-7f
Manufacturer no.:
1757064
EAN:
4017918029593
Product information "Phoenix Contact Connector MSTB 2.5/ 7-ST-5.08 7 pin 1757064"
A series of Classic COMBICON MSTB 5.08 mm pitch cable mount terminal block connectors from Phoenix Contact.
This connector type is a well known and standard user-friendly PCB terminals feature a screw connection from 0.2 mm² to 2.5 mm², forming a standard mating system for up to 320 V (III/2).
This connector type is a well known and standard user-friendly PCB terminals feature a screw connection from 0.2 mm² to 2.5 mm², forming a standard mating system for up to 320 V (III/2).
Properties
| Pin-Anzahl: | 7 |
|---|---|
| Current: | 12A |
| Type: | Female connector |
| Cable cross section: | 2.5 mm² |
| Pitch: | 5.08 mm |
| Connection: | Screw connection |
| Length: | 18.3 mm |
| Width: | 35.56 mm |
| Height: | 15 mm |
Manufacturer "Phoenix Contact"
