LED Module BAR5-7070 RGB CCT 2700K 6500K 24V 19W
Our payment methods:
Product number:
A60010
Available stock:
100
Manufacturer no.:
GKORE BAR5-7070
Product information "LED Module BAR5-7070 RGB CCT 2700K 6500K 24V 19W"

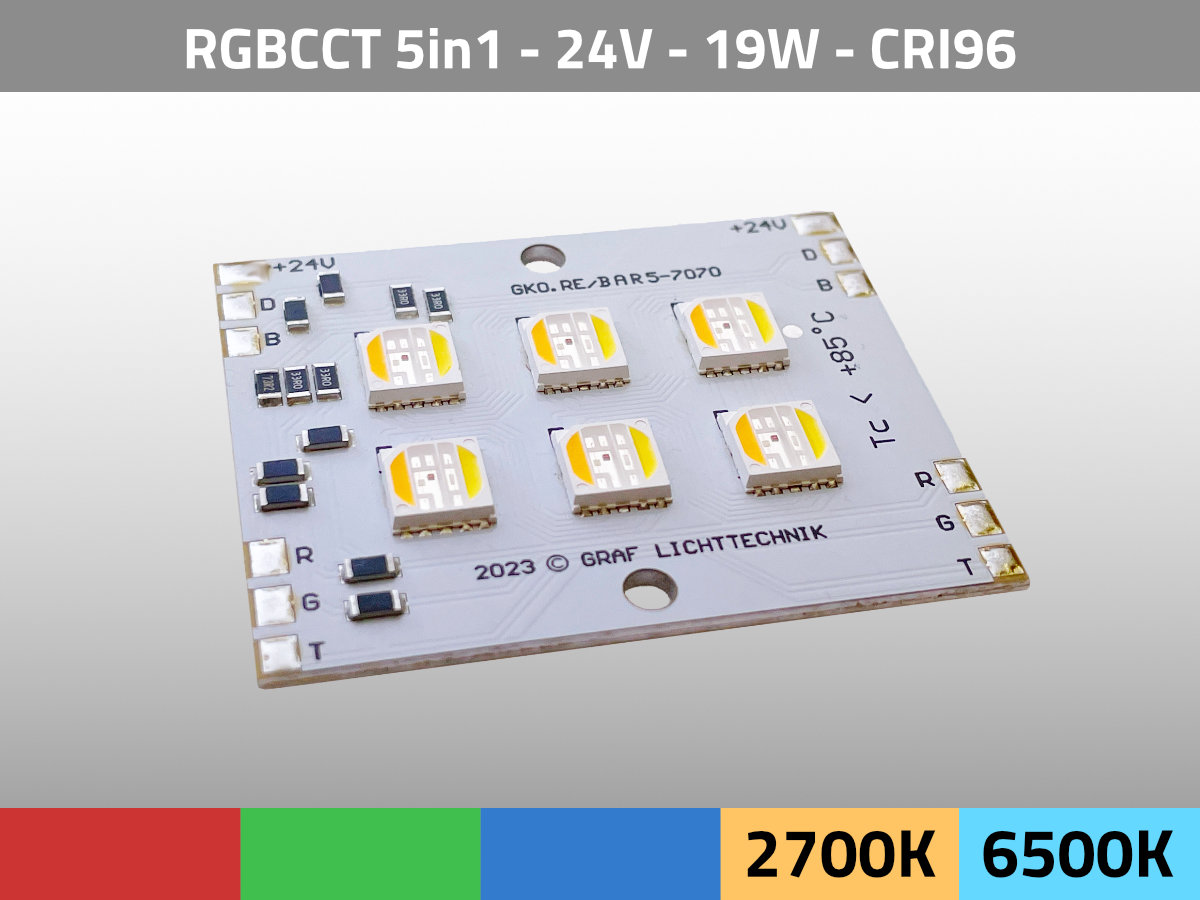

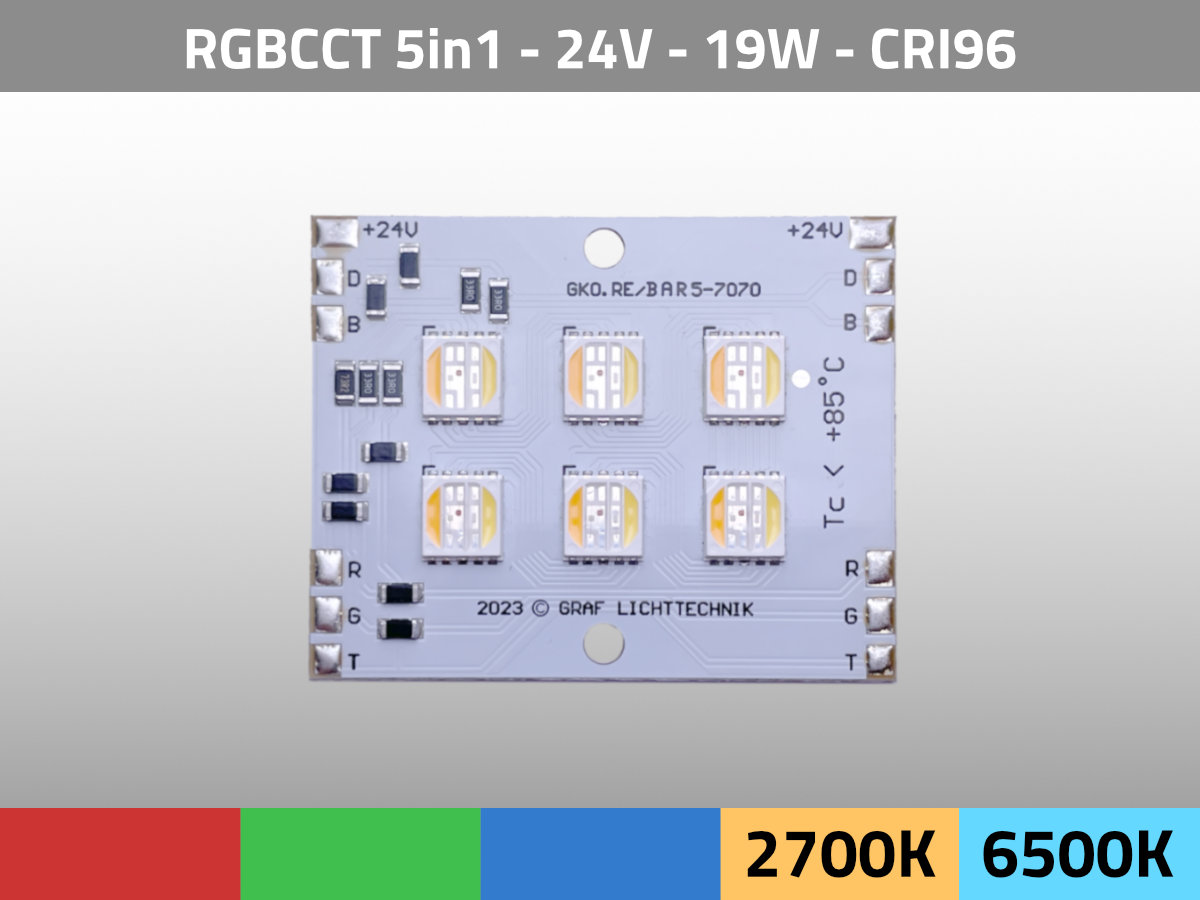

GKORE LED Module, high-power 7x7mm large 5in1 LED, RGBCCT, 24VDC, 19W. BAR5-7070 means 5cm in length.
Due the special design, this module is daisy-chainable.
Designed and manufactured in-house, this LED module contains individual 5 channels
Properties
| Beam Angle: | 120° |
|---|---|
| CRI R9: | 97,4 (2700K) | 85,06 (6500K) |
| TM30 Rf: | 94,2 (2700K) | 89,9 (6500K) |
| TM30 Rg: | 101,4 (2700K) | 100,6 (6500K) |
| Voltage Type: | Constant Voltage |
| GKORE SERIES: | GKORE CINE Series |
| Color: | CCT + RGB |
| Color Temperature: | 2700 K | 6500 K |
| CRI: | 96 (2700K) | 95 (6500K) |
| TLCI: | 98 (2700K) | 96 (6500K) |
| Wavelength Red: | 624 nm |
| Wavelength Green: | 520 nm |
| Wavelength Blue: | 448 nm |
| Voltage: | 24 VDC |
| Power: | 19 W |
| Current: | 0,80 A |
| Brightness: | 1055 lm |
| Efficiency: | 50.91 |
| Number of LEDs: | 6 LEDs |
| Number of channels: | 5 |
| LED Type: | 7070 |
| Length: | 50 mm |
| Width: | 40 mm |
| Height: | 3.00 mm |
| IP Rating: | IP 20 |
