LED Module COB9 12V 4.5W 6000K CRI98 TLCI98

€4.90*

Prices excl. VAT plus shipping costs

Available, delivery time: 2-5 days

Our payment methods:

Product number: A60003-60

Available stock: 30

Manufacturer no.: A60003-60

Product information "LED Module COB9 12V 4.5W 6000K CRI98 TLCI98"

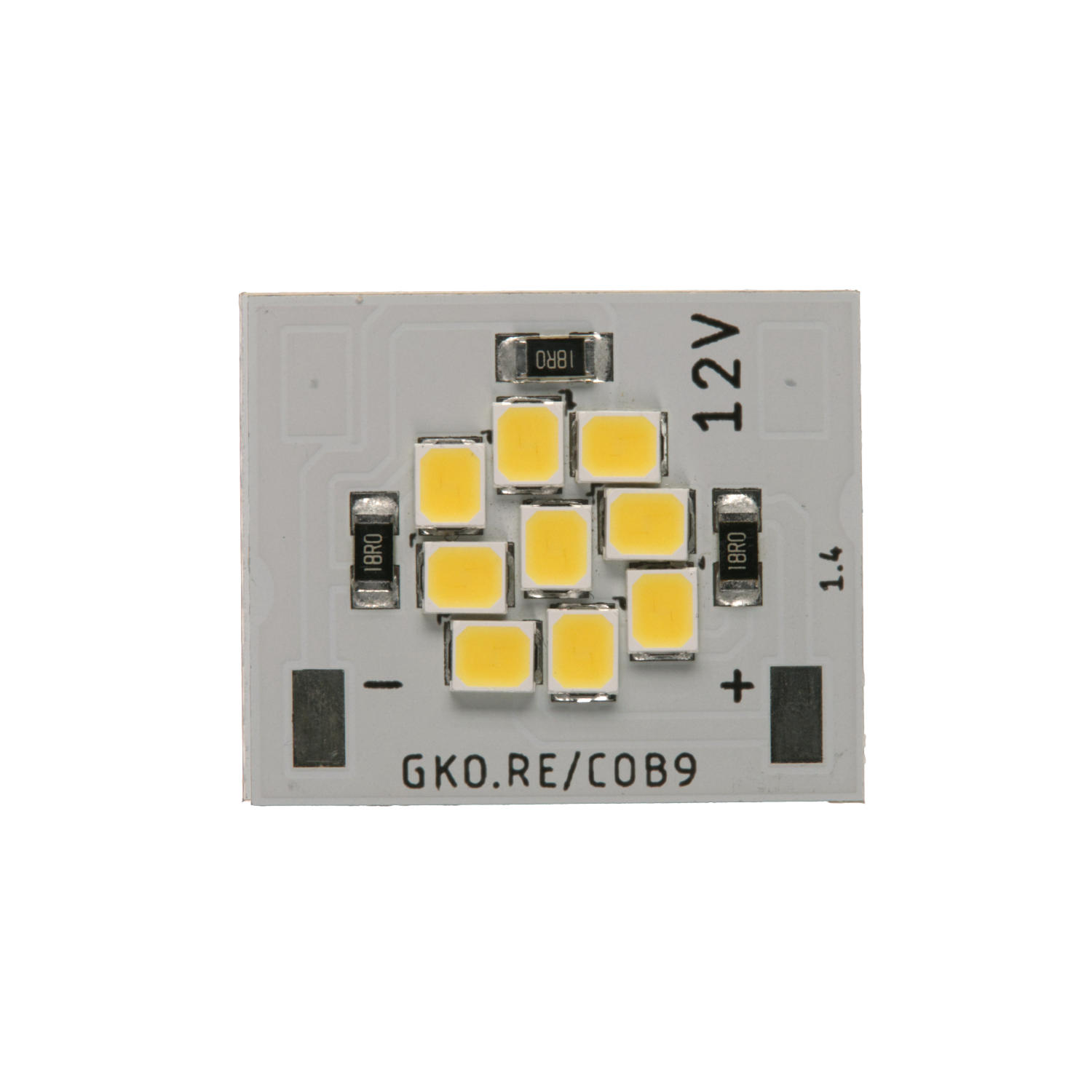

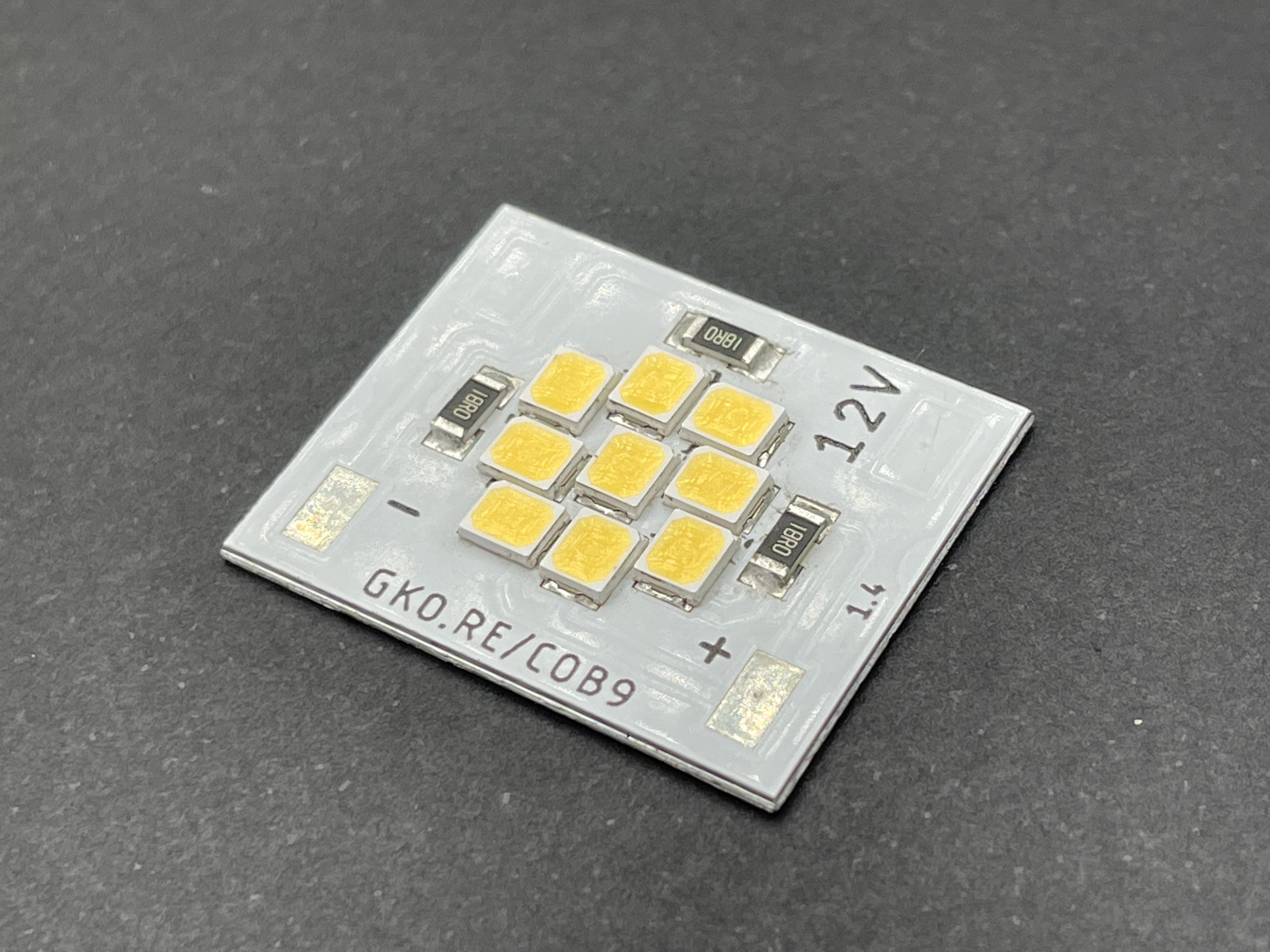

The COB9 LED module is designed for use with LED optics from LEDiL. Due it's standard size of 24x15mm, you can use it also with a wide range of LED optics and LED holders and offers very high color quality.
Beside the available color temperatures of 1600K, 2600K und 6000K, we can design an individual arrangement of LED due our inhouse manufacturing. Just get in contact with us.
Please note that this LED module is designed for use with the AC0015 accessory in combination with the AC0014. Due to the high power density, appropriate cooling is recommended.

Properties

GKORE SERIES:	GKORE CINE Series
Color:	cool white
Color Temperature:	6000 K
CRI:	96
Voltage:	12 VDC
Power:	4.5 W
Beam Angle:	120°
Number of LEDs:	9
Number of channels:	1
LED Type:	2835
LES:	13 mm
Length:	24.00 mm
Width:	20.00 mm
Height:	2.00 mm
IP Rating:	IP 20
