GKORE FX2 nano 2ch LED Effect Controller USB-C

€61.26*

Content: 1 Stück

Prices excl. VAT plus shipping costs

Our payment methods:

Product number: CT0032

Available stock: 10

Manufacturer no.: CT0032

Manufacturer GKORE

Product information "GKORE FX2 nano 2ch LED Effect Controller USB-C"

High-quality lighting effects with our 2-channel LED effect generator!

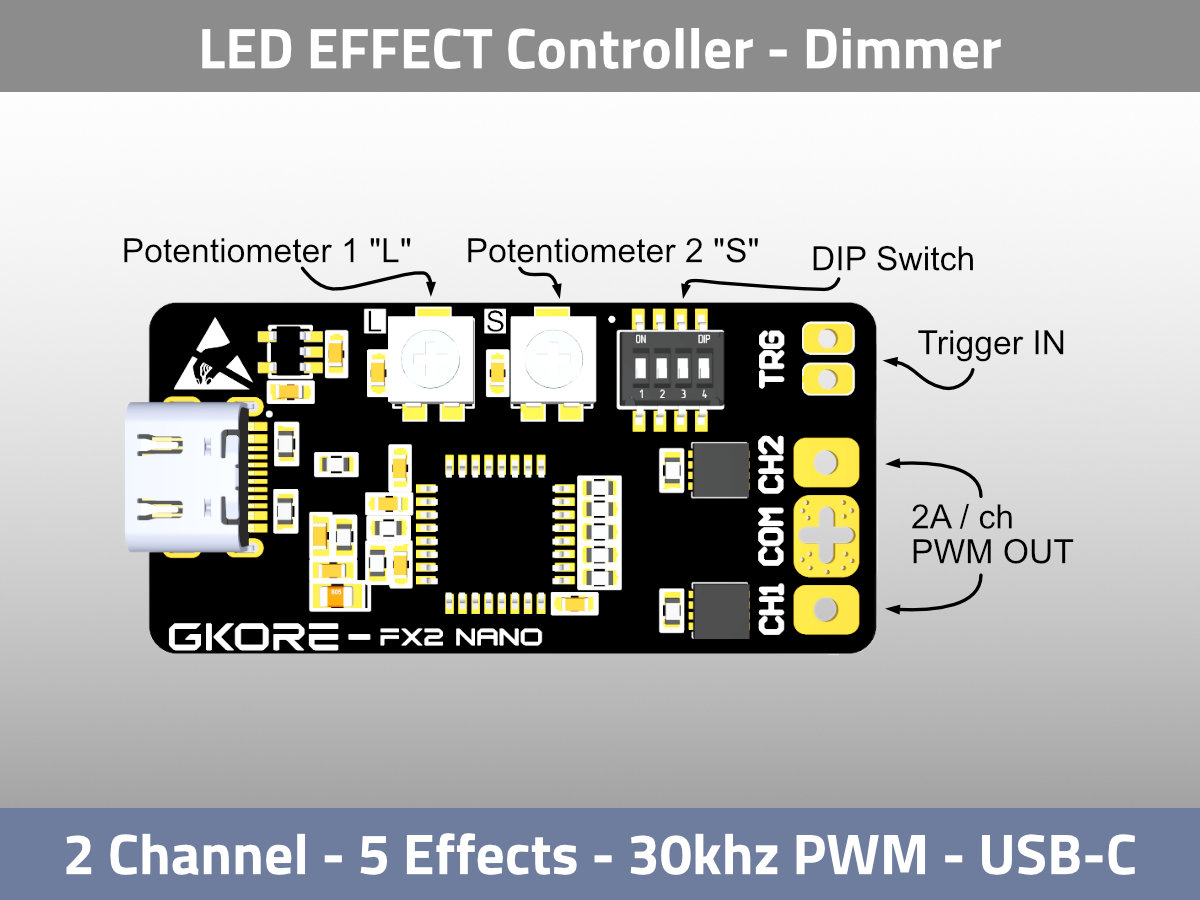

This small and powerful, USB-C 5V-based controller offers you the possibility to control constant voltage-based LED strips and LED modules with up to 2A per channel flicker-free and precisely - thanks to the 30kHz PWM, the high 10-bit dimming resolution and the two potentiometers. Ideal for smaller LED applications, our generator already provides preset effects that can be easily selected using the DIP switch. The additional trigger input activates the LED output when required.
5 pre-installed Effects and dimming functions:

CCT Dimming
Candle Effect
Blink 50/50
Fade IN/OUT
2 Single Channel Dimming

And the best thing: We provide the firmware as open source under MIT License.
That means you can create and use your own individual effects.
Just go to our github and clone or fork the repository (...will be available soon)

⭐⭐ https://github.com/graflichttechnik/gkore-fx2-nano

Buy now and take your projects to the next level!

Properties

Firmware:	OpenSource
PWM Frequency:	30kHz
Resolution:	10 bit
Voltage:	5 VDC
Power:	max. 20W
Current:	2x 2A
Connection:	USB-C

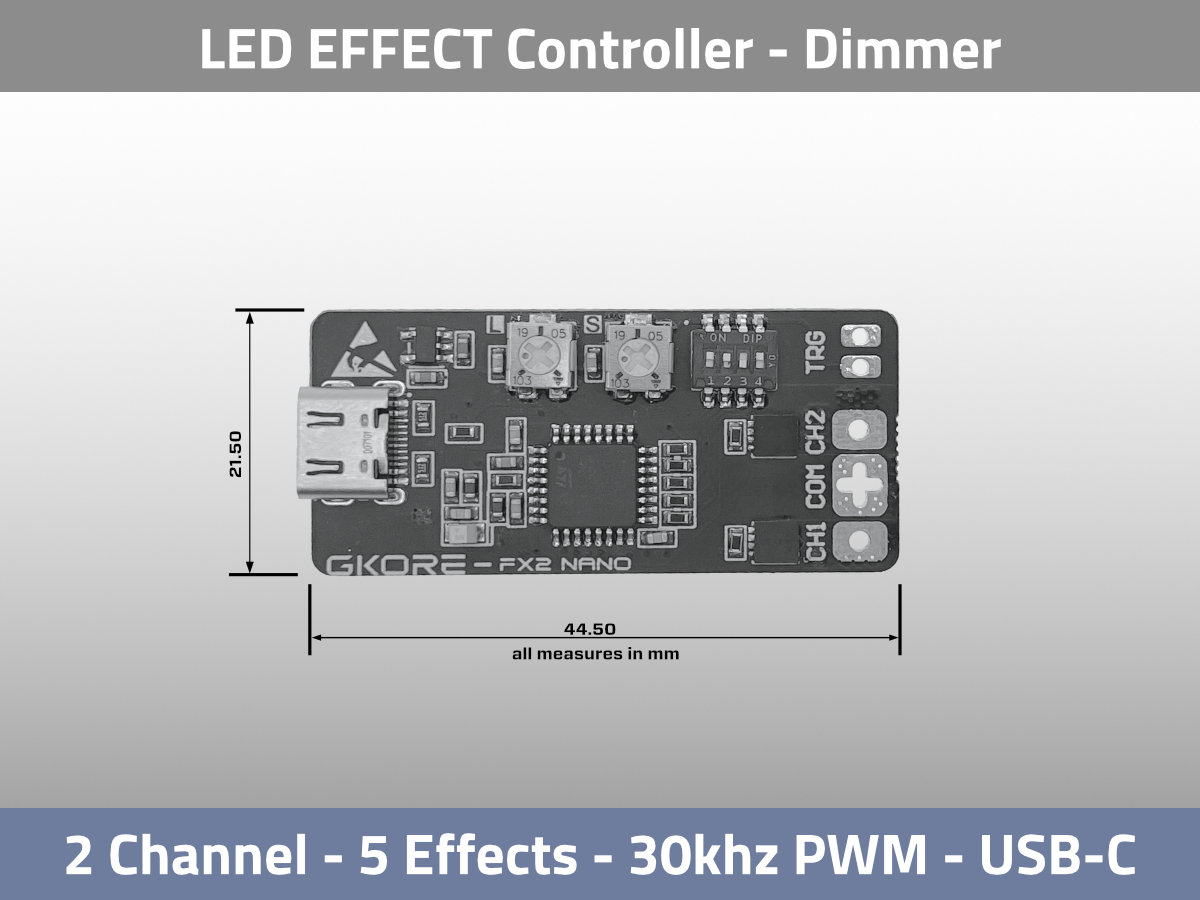

Length:	44.50 mm
Width:	21.50 mm
Height:	4.00 mm

Datasheets

Manual and data sheet GKORE FX2 nano 2 Effect Controller, Englisch

Download "Manual and data sheet GKORE FX2 nano 2 Effect Controller, Englisch" (1.51 MB)
