GKORE FX2 nano 2 - 2ch LED Effect Controller 12-24V

Skip image gallery
New Product
LED Effect Controller 2ch PWM 12V 24V Constant Voltage Top Hero

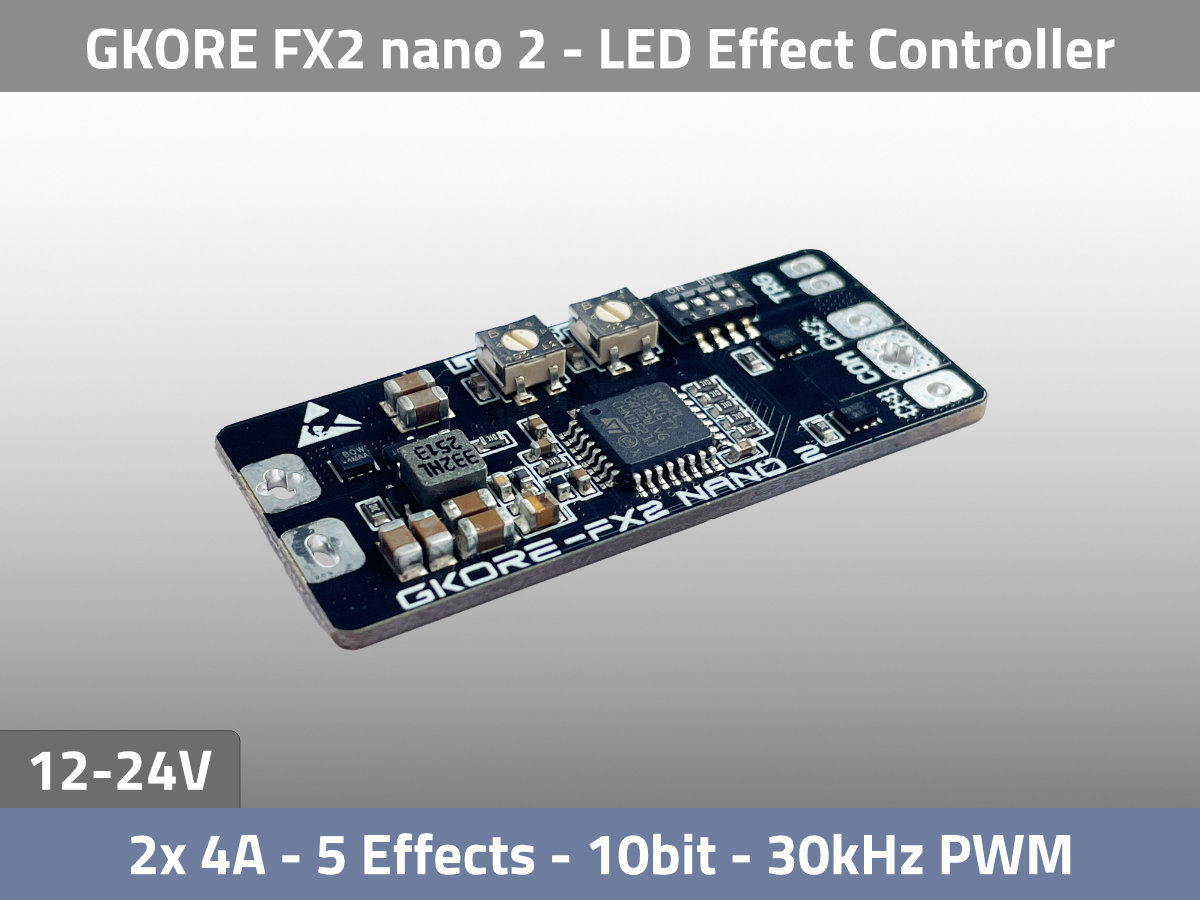

LED Effect Controller 2ch PWM 12V 24V Constant Voltage Iso

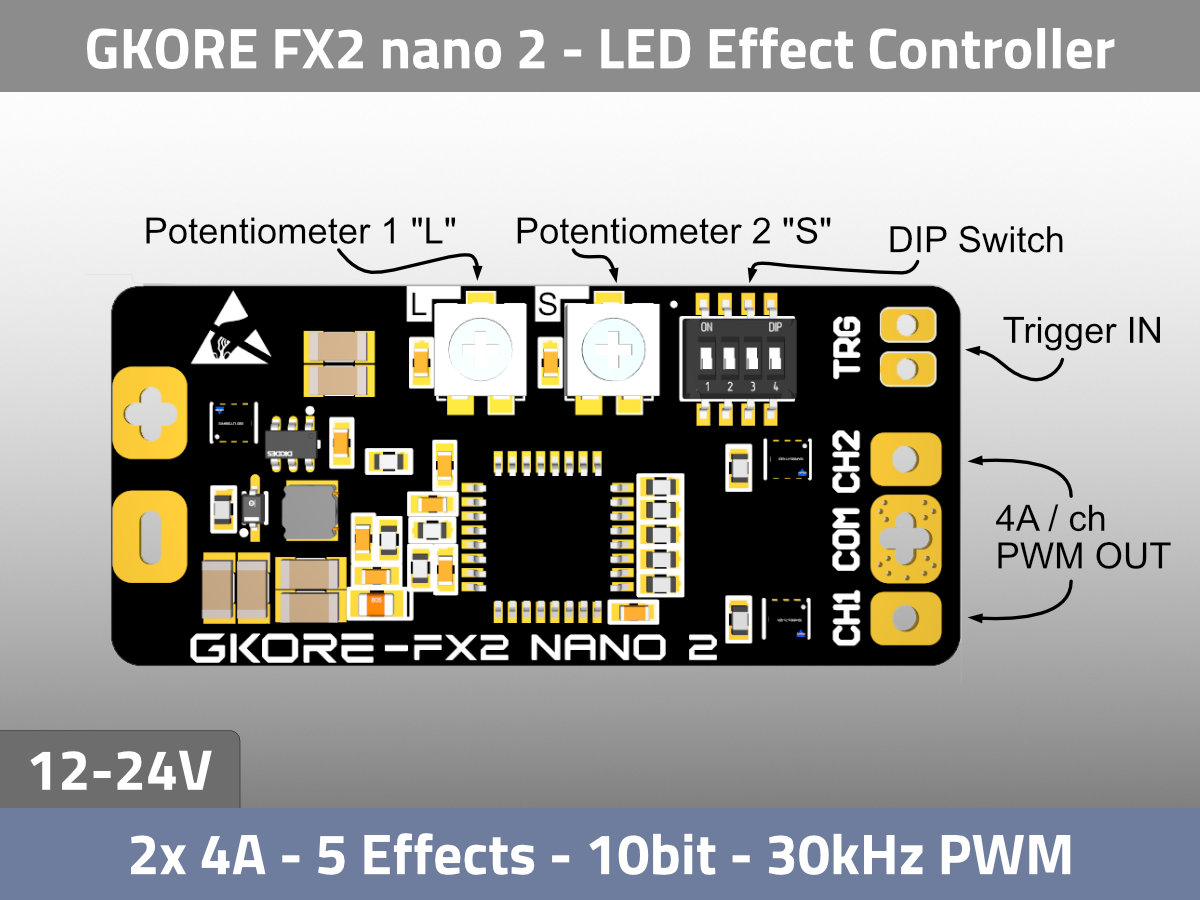

LED Effect Controller 2ch PWM 12V 24V Constant Voltage Top UI

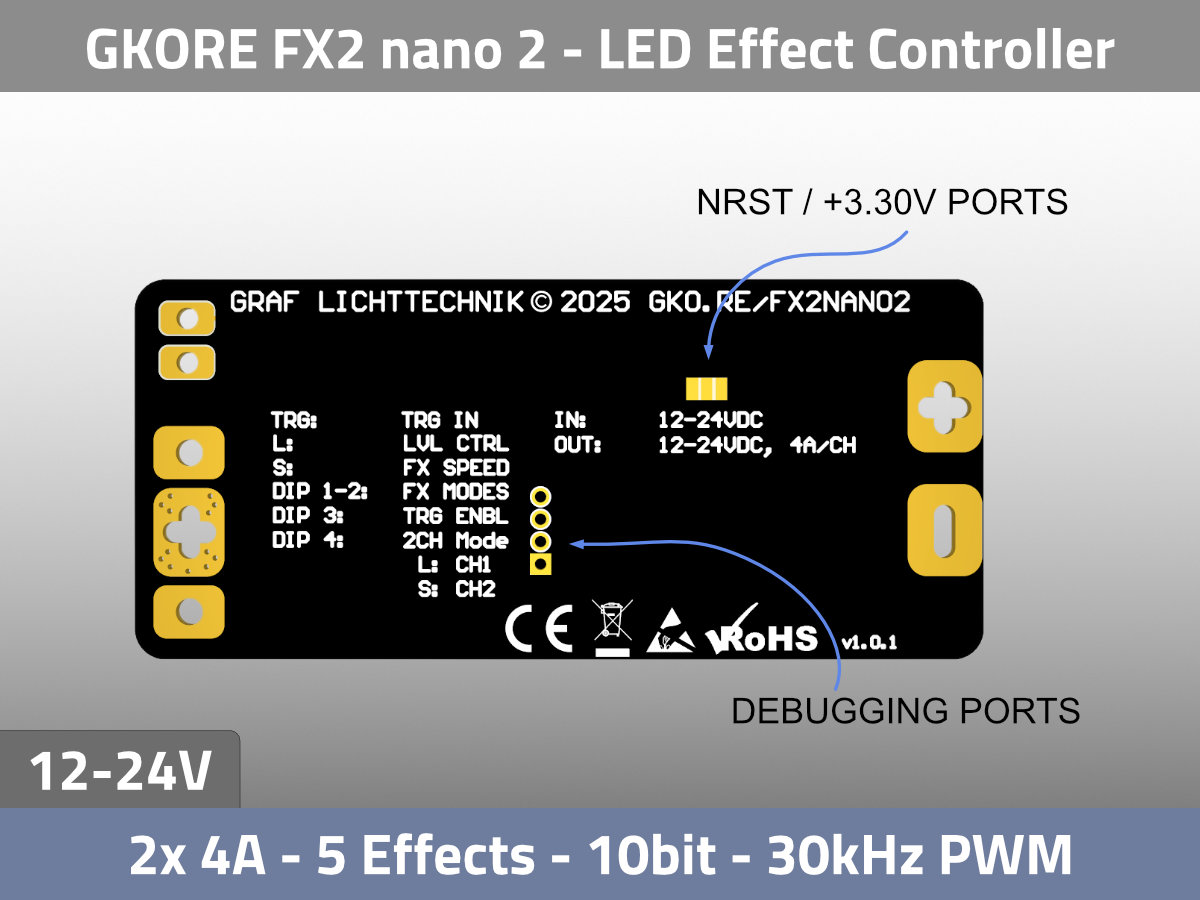

LED Effekt Dimmer Controller 2ch PWM 12V 24V Konstantspannung Top Backside
LED Effect Controller 2ch PWM 12V 24V Constant Voltage Top Hero
LED Effect Controller 2ch PWM 12V 24V Constant Voltage Iso
LED Effect Controller 2ch PWM 12V 24V Constant Voltage Top UI
LED Effekt Dimmer Controller 2ch PWM 12V 24V Konstantspannung Top Backside

€67.14*

Prices excl. VAT plus shipping costs

Privacy
Our payment methods:
Product number: CT0033
Available stock: 20
Manufacturer no.: CT0033
Manufacturer GKORE

Product information "GKORE FX2 nano 2 - 2ch LED Effect Controller 12-24V"

12–24 V version - High-quality lighting effects with our 2-channel LED effect generator

This compact and powerful controller allows you to precisely and flicker-free control constant voltage-based LED strips and LED modules with up to 4A per channel. Thanks to the 30 kHz PWM frequency, a fine 10-bit dimming resolution, and the two integrated potentiometers, lighting effects can be conveniently adjusted.

For a quick start, various effects are already integrated and can be selected directly via the DIP switch. In addition, a trigger input is available, which can be used to activate the LED output as needed – perfect for creative projects and individual applications.
These are the 5 pre-installed Effects and dimming functions:
  • CCT Dimming
  • Candle Effect
  • Blink 50/50
  • Fade IN/OUT
  • 2 Single Channel Dimming

Another highlight: the firmware is open source. This gives you complete freedom to develop and use your own effects. Simply clone or fork the repository on GitHub (... available soon).

If required, we can also create an effect for you, e.g. to mimic a TV screen or as a visual trigger for VFX. Just get in touch with us.

Properties
Firmware: OpenSource
PWM Frequency: 30kHz
Resolution: 10 bit
Voltage Type: Constant Voltage
Voltage: 12-24VDC
Current: 2x 4A
Connection: Solder Pad
Length: 48.00 mm
Width: 21.50 mm
Height: 4.00 mm
Datasheets
Bedienungsanleitung GKORE FX2 nano 2 Effekt-Dimmer, Englisch

Oops! Your browser doesn't support PDFs!
Download "Bedienungsanleitung GKORE FX2 nano 2 Effekt-Dimmer, Englisch" (1.24 MB)
Manufacturer "GKORE"

Manufacturer:
Graf Lichttechnik UG
Goerzallee 299
14167 Berlin

Contact:
info@graf-lichttechnik.de
- GKORE is a registered trademark of Graf Lichttechnik UG

Related links of the manufacturer

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Perfect Flicker Free Dimming

Our LED controllers are used in many film and movie productions.
This is what we like about:

  • DMX support
  • RDM support
  • High PWM Frequency for flicker free dimming
  • High Bit rates for smooth dimming
  • Master mode for Stand Alone control
  • Reliably and low cost
Skip product gallery

Matching Products

LED Modul Bi-Color CCT Hybrid 2600K 6000K Kunstlicht Tageslicht CRI96
LED Modul BAR5 CCT Configuration 24V 15W HighOutput CRI96
GKORE LED Module, 5 channels, 24VDC, CCT Configuration. Power Dissipation of full 15W (5x 3W). BAR5 means 5cm in length. Due the special design, this module is daisy-chainable.Original GKORE product - Five color LED module 24V.Designed and manufactured in-house, this LED module contains 5 channels each consits 6 LEDs.About our own in-house manufacturing service:The great thing getting a module from us is that you get to select which colors you want the LEDs to be and we will fabricate it according to your wishes.This variant has a high output of 15W and a voltage of 24VDC.
Product number: A60007-CCT

€25.10*
Privacy
LED Module COB 9 CCT Tunable Tungsten Daylight 12V CRI96
LED Modul COB12 12V 2x3W 2600K 6000K CCT Tunable CRI96 TLCI95
The Bi-Color 2ch COB12 LED module is designed for use with LED optics from LEDiL. Due it's standard size of 24x20mm you can use it with a wide range of LED optics and LED holders and offers very high color quality.Beside the available color temperatures of 1600K, 2600K und 6000K, we can design an individual arrangement of LED due our inhouse manufacturing. Just get in contact with us.
Product number: A60006-2660

€7.50*
Privacy
New Product

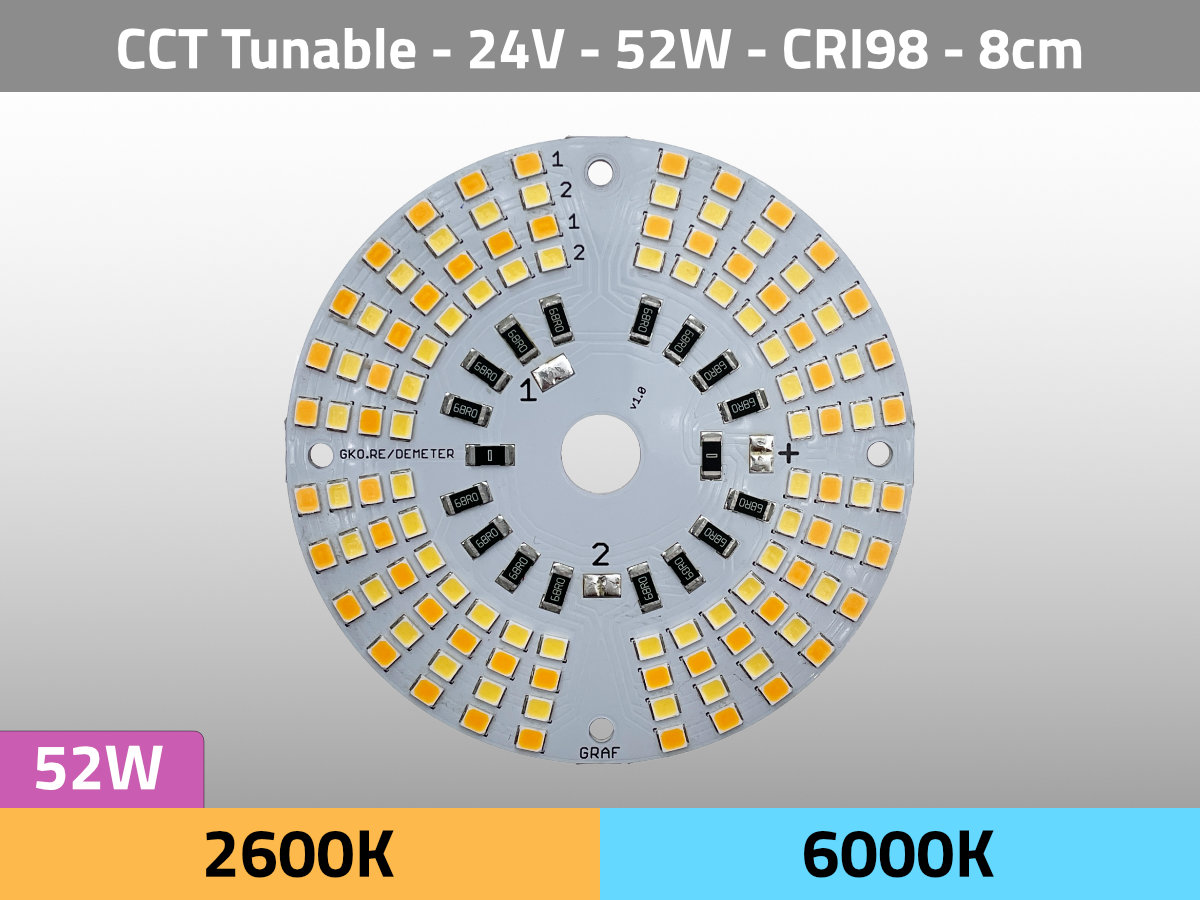

LED Module CCT Tunable cri 98 TLCI 100 A60005-22 52W DEMETER movie film
LED Modul DEMETER 2600K 6000K 24V 52W CRI98
GKORE LED module, 2 channels, 24VDC, 52W, Tungsten 2600K, Daylight 6000K. Round. Extrem Powerful. Identical to the 22-watt version, this module offers an incredible 52 watts in a user-friendly 80mm diameter. Adequate cooling is mandatory.The Demeter LED module takes its name from the film "The Last Voyage of the Demeter". It was used in various oil and gas light fixtures converted to LEDs.In some cases, the module was implemented in a combination of Tungsten and Amber color to come closer to the light color of oil lamps.With 52 watts of powerful output and uniform light with excellent color rendering (CRI 98), this module leaves nothing to be desired. The selectable color temperature from 2600K to 6000K makes it ideal for film, practical lighting, and DIY projects. Thanks to its compact design, it can be flexibly integrated into lamps, props, or your own lighting designs – for professional results in every scene.Original GKORE product – 2 channels with highly color-corrected 2835 LEDs. 24V voltage. Easily dimmable via PWM.Designed and manufactured in Berlin, this LED module offers 2 individual channels with 112 LEDs.
Product number: A60005-52

€20.08*
Privacy
LED Module ARRAY 12 2835 CCT Tunable Tungsten Daylight 24V CRI96 Single
LED Module ARRAY12 CCT 2600K & 6000K 24V 6W CRI96 TLCI96
GKORE LED Module, 2 channel, 24VDC, CCT Configuration. Power Dissipation of 6W (2x 3W). ARRAY12 can be easily daisy-chain with more ARRAY12 modules, due it's the special design.We designed it to be combined with our 30° or 60° beam angle lens arrays.Original GKORE product - Two color LED module 24V.Designed and manufactured in-house, this LED module contains 2 channels each consits 6 LEDs.About our own in-house manufacturing service:The great thing getting a module from us is that you get to select which colors you want the LEDs to be and we will fabricate it according to your wishes.This variant has a high output of 15W and a voltage of 24VDC.
Product number: A60008

€9.15*
Privacy
LED Module BAR2x2 CCT 2600K & 6000K 12V 2W HighOutput CRI96
LED Module BAR2x2 CCT 2600K & 6000K 12V 2W HighOutput CRI96
Original GKORE product - CCT 2600K & 6000K module 12V.Designed and manufactured in-house, this LED module contains 4 single LEDs that have a color temperature of either warm white tungsten 2600K or cool white artificial daylight 6000K.The LEDs have a substantial CRI95+ which is a perfect range for film lighting, therefore high quality color rendering.This variant has a high output of 2W and a voltage of 12VDC.
Product number: A60002-12-CCT-HO

€4.95*
Privacy
LED Module BAR2x2 HighOutput individual color 12V CRI96
LED Module BAR2x2 HighOutput individual color 12V CRI96
Original GKORE product - Single color LED module 12V.Designed and manufactured in-house, this LED module contains 4 single color LEDs.The great thing getting a module from us is that you get to select which colors you want the LEDs to be and we will fabricate it according to your wishes.This variant has a high output of 2W and a voltage of 12VDC.
Product number: A60002-12-IND-HO

€5.80*
Privacy
LED Module BAR2x3 CCT 2600K & 6000K 12V 3W HighOutput CRI96
LED Module BAR2x3 CCT 2600K & 6000K 12V 3W HighOutput CRI96
GKORE LED Module - 2 channels 50/50, 12VDC. CCT 2600K & 6000K module. High Power 3W (2x 1.5WOriginal GKORE product - CCT 2600K & 6000K module 12V.Designed and manufactured in-house, this LED module contains 6 single LEDs that have a color temperature of either warm white tungsten 2600K or cool white artificial daylight 6000K.The LEDs have a substantial CRI95+ which is a perfect range for film lighting, therefore high quality color rendering.This variant has a high output of 3W and a voltage of 12VDC.
Product number: A60001-12-CCT-HO

€6.60*
Privacy
LED Module BAR2x3 CCT 2700K & 6500K 12V 1.2W CRI96+
LED Module BAR2x3 CCT 2700K & 6500K 12V 1.2W CRI96+
GKORE LED Module, 2 channel 50/50, 12VDC. CCT 2700K & 6500K module. Mid-Power 1.2W (2x 0.6W) Original GKORE product - CCT 2700K & 6500K module 12V.Designed and manufactured in-house, this LED module contains 6 single LEDs that have a color temperature of either warm white tungsten 2700K or cool white artificial daylight 6500K.The LEDs have a substantial CRI96+ which is a perfect range for film lighting, therefore high quality color rendering.The division of 2 individual channels, can be imitated flickering with an external DMX dimmer.The module can be easily extended via daisy-chain. There is no extra gap between the LEDs.
Product number: A60001-12-CCT

€6.60*
Privacy
LED Module BAR2x3 individual color 12V 3W HighOutput CRI96
LED Module BAR2x3 individual color 12V 3W HighOutput CRI96
GKORE LED Module, 2 channel 50/50, 12VDC. Indiviual Configuration. Power 3W (2x 1.5W) Original GKORE product - 2835 color LED module 12V.Developed and manufactured in our own workshop, this LED module offers 6 individual LEDs that can be controlled individually in 2 channels of 3 LEDs each.You can have this module individually equipped. The LED size is 2835 and we have various colours and CCT colour corrected white light LEDs in stock.This variant has a high output of 3W and a voltage of 12VDC.
Product number: A60001-12-IND-HO

€7.50*
Privacy
RGB CCT LED High Power CRI TLCI iso
LED Module BAR5-7070 RGB CCT 2700K 6500K 24V 19W
GKORE LED Module, high-power 7x7mm large 5in1 LED, RGBCCT, 24VDC, 19W. BAR5-7070 means 5cm in length. Due the special design, this module is daisy-chainable.Original GKORE product - 6 high-power RGBCCT 5in1 color LED module 24V.Designed and manufactured in-house, this LED module contains individual 5 channels
Product number: A60010

€12.52*
Privacy
LED Module COB 9 1600K Amber Tungsten 12V CRI96
LED Module COB9 12V 4.5W 1600K Amber CRI96
The COB9 LED module is designed for use with LED optics from LEDiL. Due it's standard size you can use it with nalso a wide range of LED optics and LED holders and offers very high color quality.Beside the available color temperatures of 1600K, 2600K und 6000K, we can design an individual arrangement of LED due our inhouse manufacturing. Just get in contact with us.
Product number: A60003-16

€4.90*
Privacy
LED Module COB 9 2600K Tungsten 12V CRI96
LED Module COB9 12V 4.5W 2600K CRI96 TLCI95
The COB9 LED module is designed for use with LED optics from LEDiL. Due it's standard size you can use it with nalso a wide range of LED optics and LED holders and offers very high color quality.Beside the available color temperatures of 1600K, 2600K und 6000K, we can design an individual arrangement of LED due our inhouse manufacturing. Just get in contact with us.
Product number: A60003-26

€4.90*
Privacy
LED Module COB 9 6000K Tageslicht Daylight 12V CRI96
LED Module COB9 12V 4.5W 6000K CRI98 TLCI98
The COB9 LED module is designed for use with LED optics from LEDiL. Due it's standard size of 24x15mm, you can use it also with a wide range of LED optics and LED holders and offers very high color quality.Beside the available color temperatures of 1600K, 2600K und 6000K, we can design an individual arrangement of LED due our inhouse manufacturing. Just get in contact with us.
Product number: A60003-60

€4.90*
Privacy
New Product
LED Module CCT Tunable cri 98 TLCI 100 A60005-22 22W DEMETER movie film
LED Module DEMETER 2600K 6000K 24V 22W CRI98
GKORE LED module, 2 channels, 24VDC, 22W, Tungsten 2600K, Daylight 6000K. Round. Powerful. The Demeter LED module takes its name from the film "The Last Voyage of the Demeter". It was used in various oil and gas light fixtures converted to LEDs.In some cases, the module was implemented in a combination of Tungsten and Amber color to come closer to the light color of oil lamps.With 22 watts of powerful output and uniform light with excellent color rendering (CRI 98), this module leaves nothing to be desired. The selectable color temperature from 2600K to 6000K makes it ideal for film, practical lighting, and DIY projects. Thanks to its compact design, it can be flexibly integrated into lamps, props, or your own lighting designs – for professional results in every scene.Original GKORE product – 2 channels with highly color-corrected 2835 LEDs. 24V voltage. Easily dimmable via PWM.Designed and manufactured in Berlin, this LED module offers 2 individual channels with 112 LEDs (56 LEDs per color temperature).
Product number: A60005-22

€15.04*
Privacy
New Product

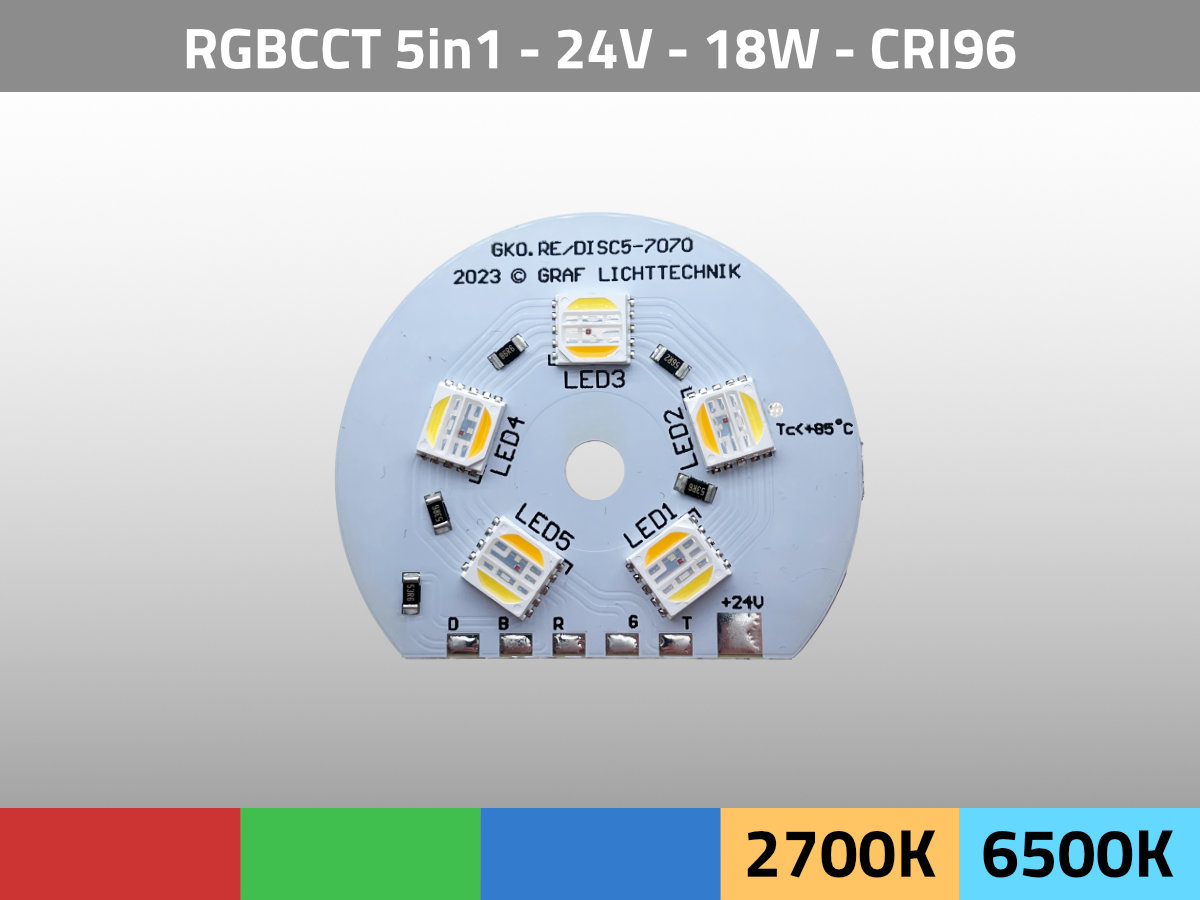

RGB CCT 5in1 LED High Power CRI TLCI Hero Top
