DMX TO ARRI ADM24 CONVERTER / CONTROLLER


Overview
This DMX controller allows to control an ARRI ADM24 analog dimmer for a 20k or 24k Tungsten lighting fixture.
- This hardware may only be used by authorized, trained and professional personnel -
Features
- Easy and quick setup
- DMX address setting
- 12-24VDC PowerIn via 5.5mm 2.1mm jack
- 20mA OUTPUT current

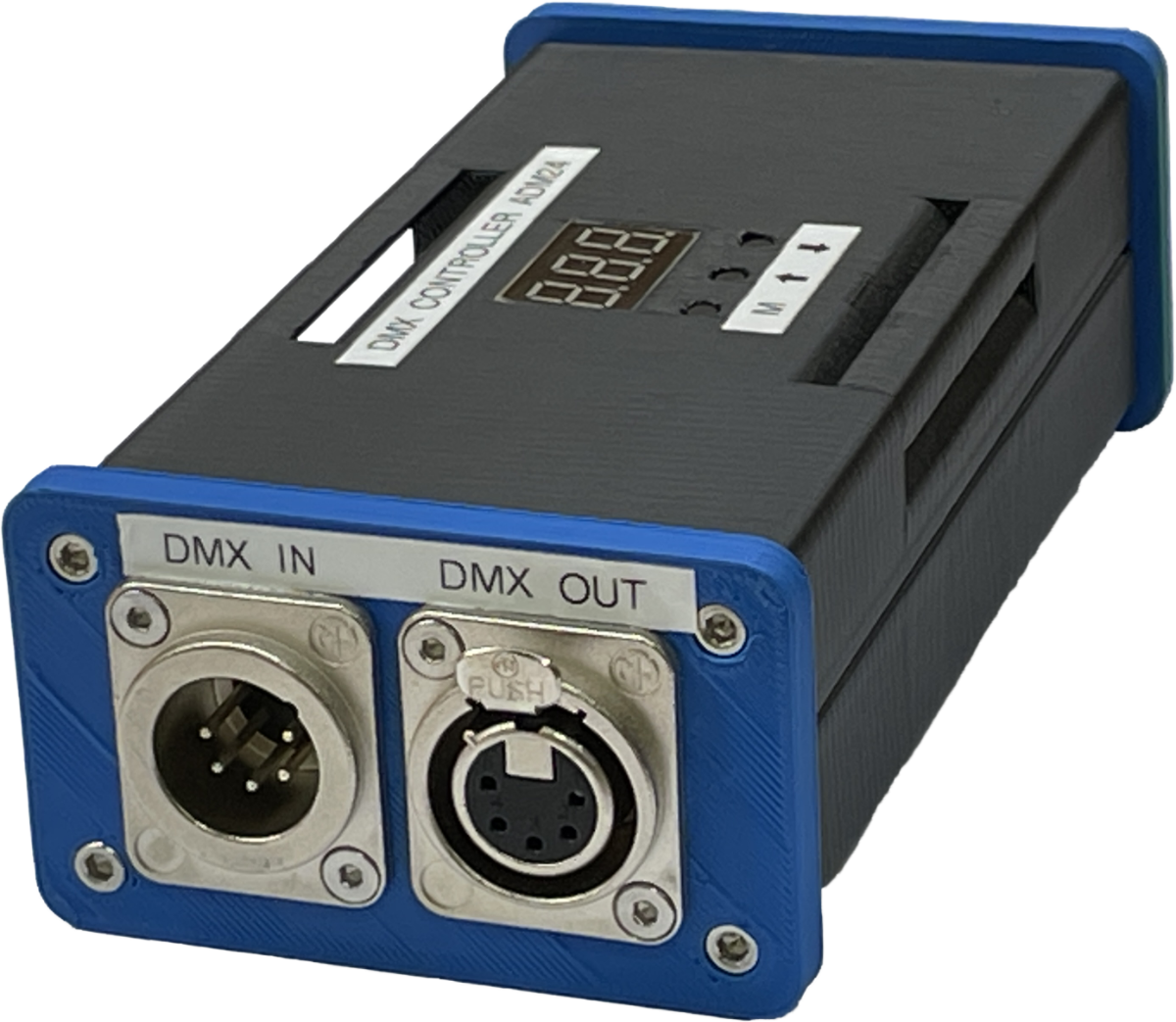

- XLR5 DMX IN and DMX-Through

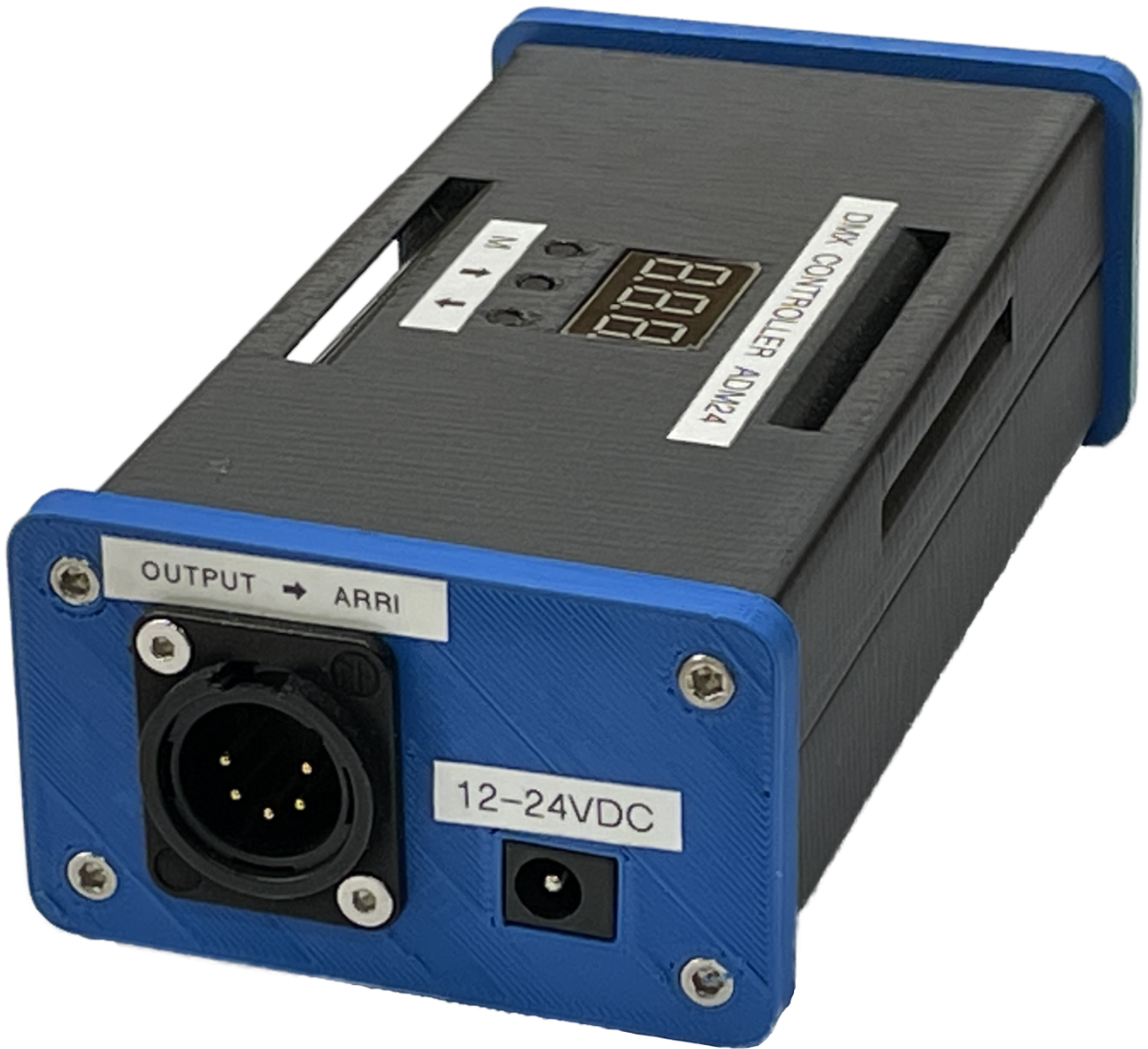

- XLR5 analog OUT for ARRI ADM24 Dimmer
User Interface
System parameter setting
- Long press M and ⬆ key for 2s, prepare for setup system parameter:
- decode mode, 0/1-1OV output, output PWM frequence, output brightness curve and automatic blank screen
- Short press M key to switch four item: - Decode mode: short press ⬆ or ⬇ key to switch one channel decode("d-1"), two channel decode(“d-2”) or four-channel decode(“d-4”).When set as 1 channel decode, the decoder occupy only 1 DMX address, and four channel output the same brightness of this DMX address. _This controller is set to occupy 1 channel / DMX address
- 0/1-10V output : short press ⬆ or ⬇ key to switch 0-10V(”00”) or 1-10V(“1-0”) - Output PWM frequence : short press ⬆ or ⬇ key to switch 500Hz(”FL”) or 2KHz(”FH”). - Output brightness curve : short press ⬆ or ⬇ key to switch linear curvel "C-L”) or logarithmic ("C-E"). - Automatic blank screen_ : short press ⬆ or ⬇ key to switch enable ("bon" or disable "bof") automatic blank screen
- Long press M key for 2s or timeout 10s, quit system parameter setting
DMX Mode settings
- Short press M key, when display 001~999^1 , enter DMX mode
- Press ⬆ or ⬇ key to change DMX starting address (001 ~ 999^2 ), long press for fast adjustment
- If there is a DMX signal input, will enter DMX mode automatically
- DMX Dimming: Each channel setting (see system parameter settings) occupy 1 - 4 DMX address when connecting the DMX console
Download
- Manual Download: Datasheet and Manual DMX ADM24 - ENG PDF 0.61MB
(^1) This will be changed in the future to a maximum of 512 DMX addresses. 999 is just stupid
(^2) This will be changed in the future to a maximum of 512 DMX addresses. 999 is just stupid
